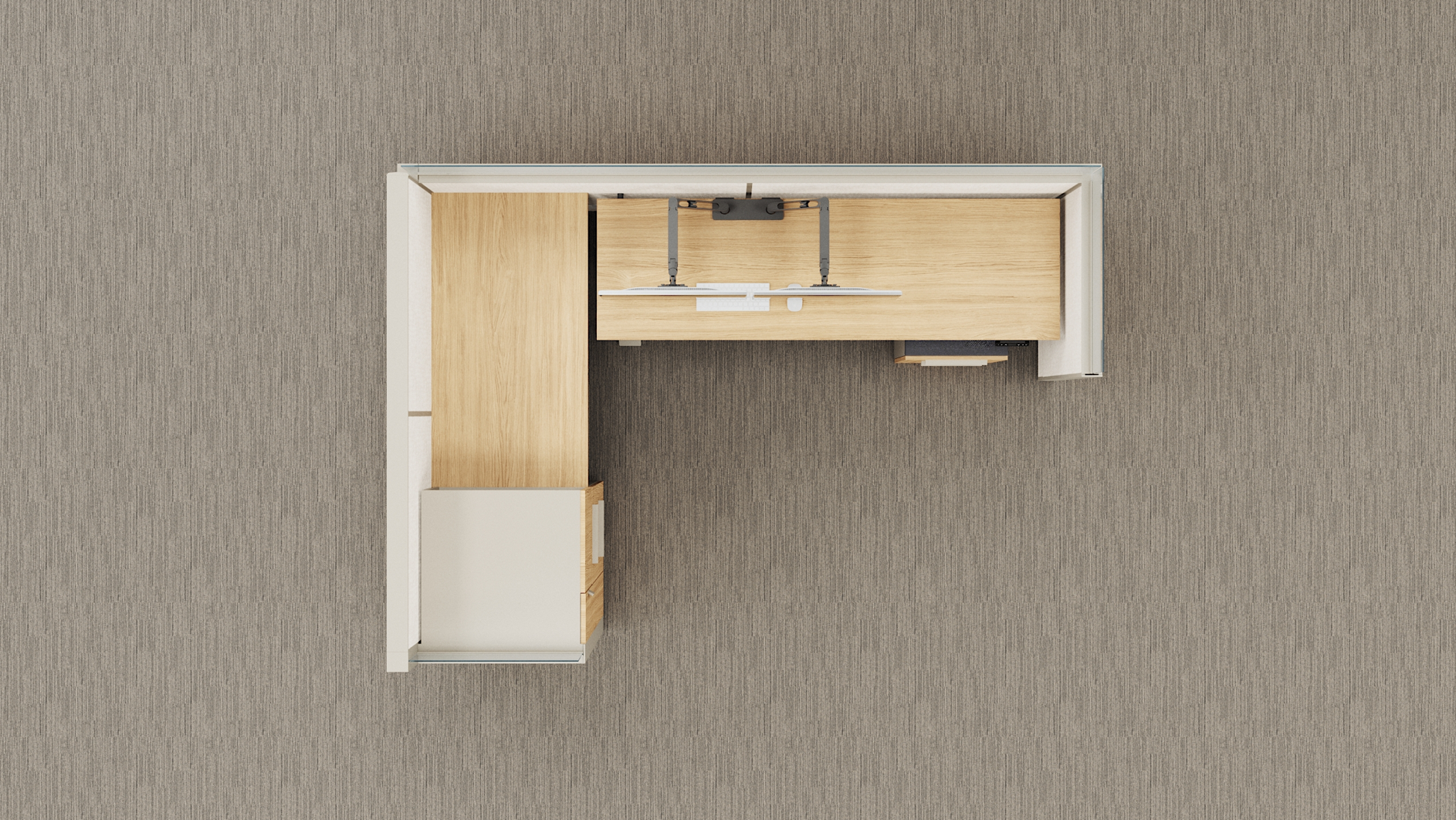

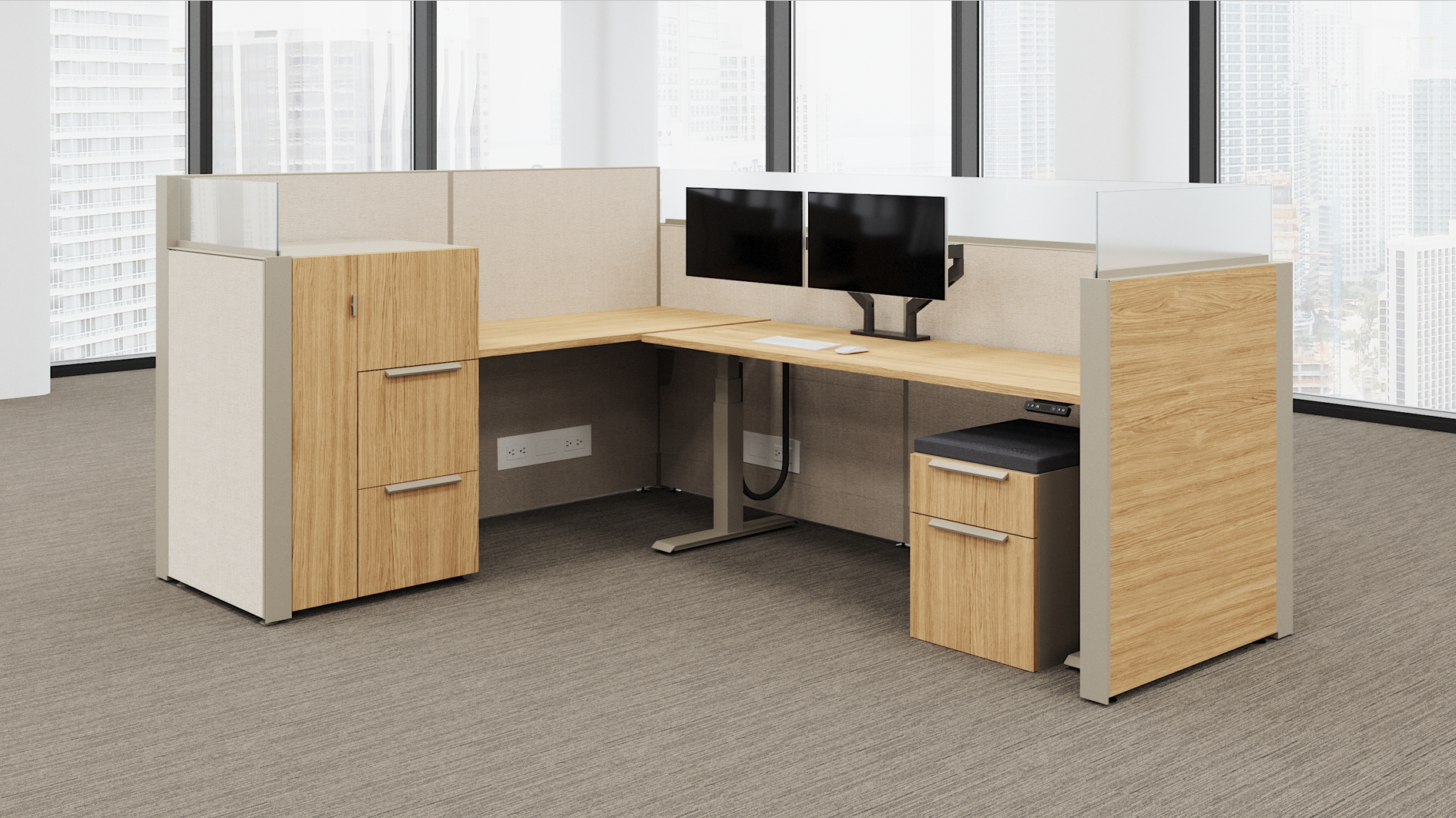

CB-01

Specification

  • Leverage Panel

    • Height: 51”  |  42” Solid Panel + 9“ Frosted Glass

    • Laminate: Campus Oak

    • Metal: Sand  //  Glass: Frosted

  • Teknion Height Adjustable Desk

    • 24”D x 48”W  and 23“D x 70”W Worksurfaces

      Laminate: Campus Oak

      Range: 22.6” - 48.7“

  • District Storage Tower

    • 42”H x 23”D File/File Configuration with Right Open Compartment and coat storage on left

    • Laminate Case | Sand

    • Laminate Front | Campus Oak

    • Metal Pulls | Sand

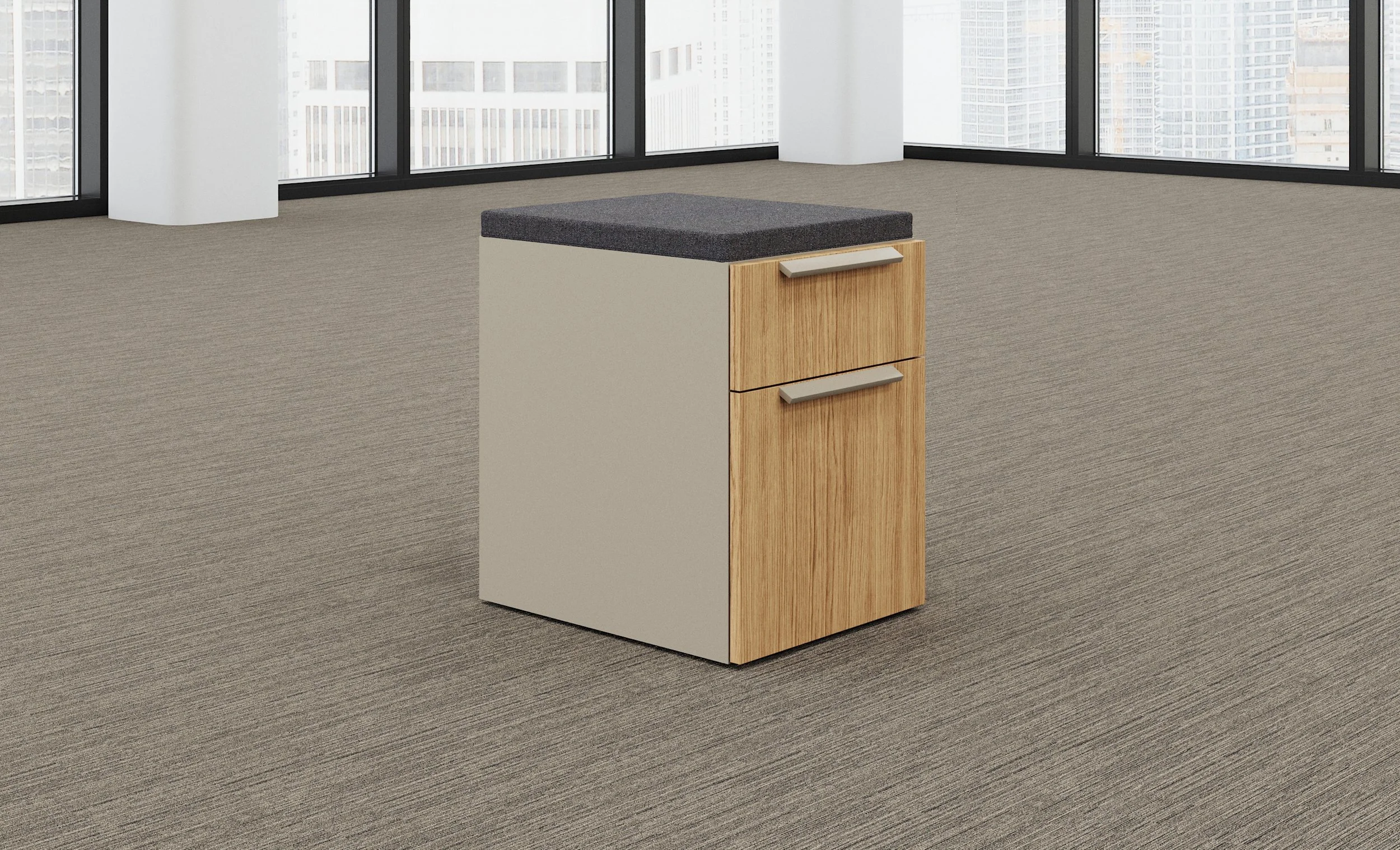

    District | Box File Mobile Ped with Cushion

    • Laminate Case | Sand

    • Laminate Front | Campus Oak

    • Metal Pulls | Color: Sand

    • Seat Cushion | LUUM: Heather Tech, Onyx

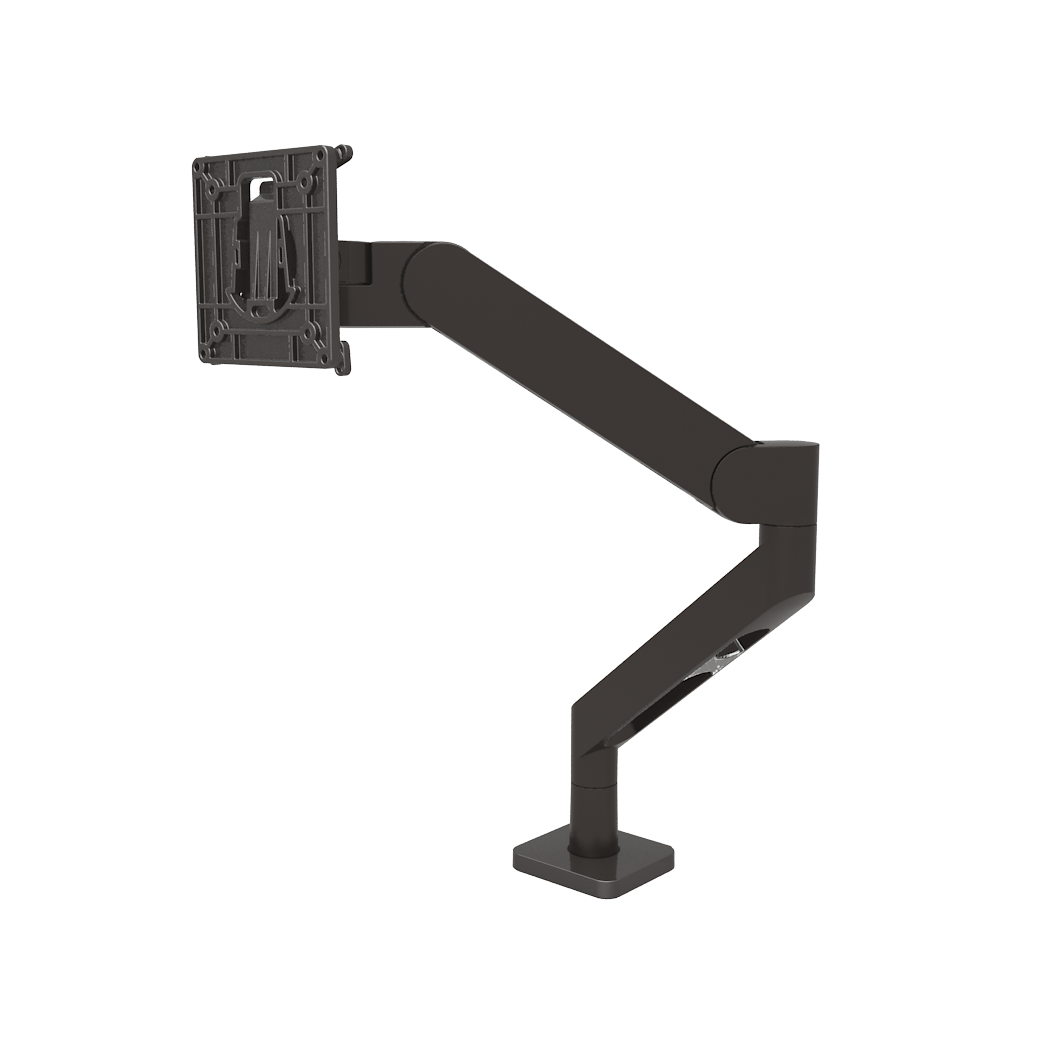

  • Teknion Swerv Monitor Arm

    • (4) Single Monitor Arms

    • Finish: Anthracite

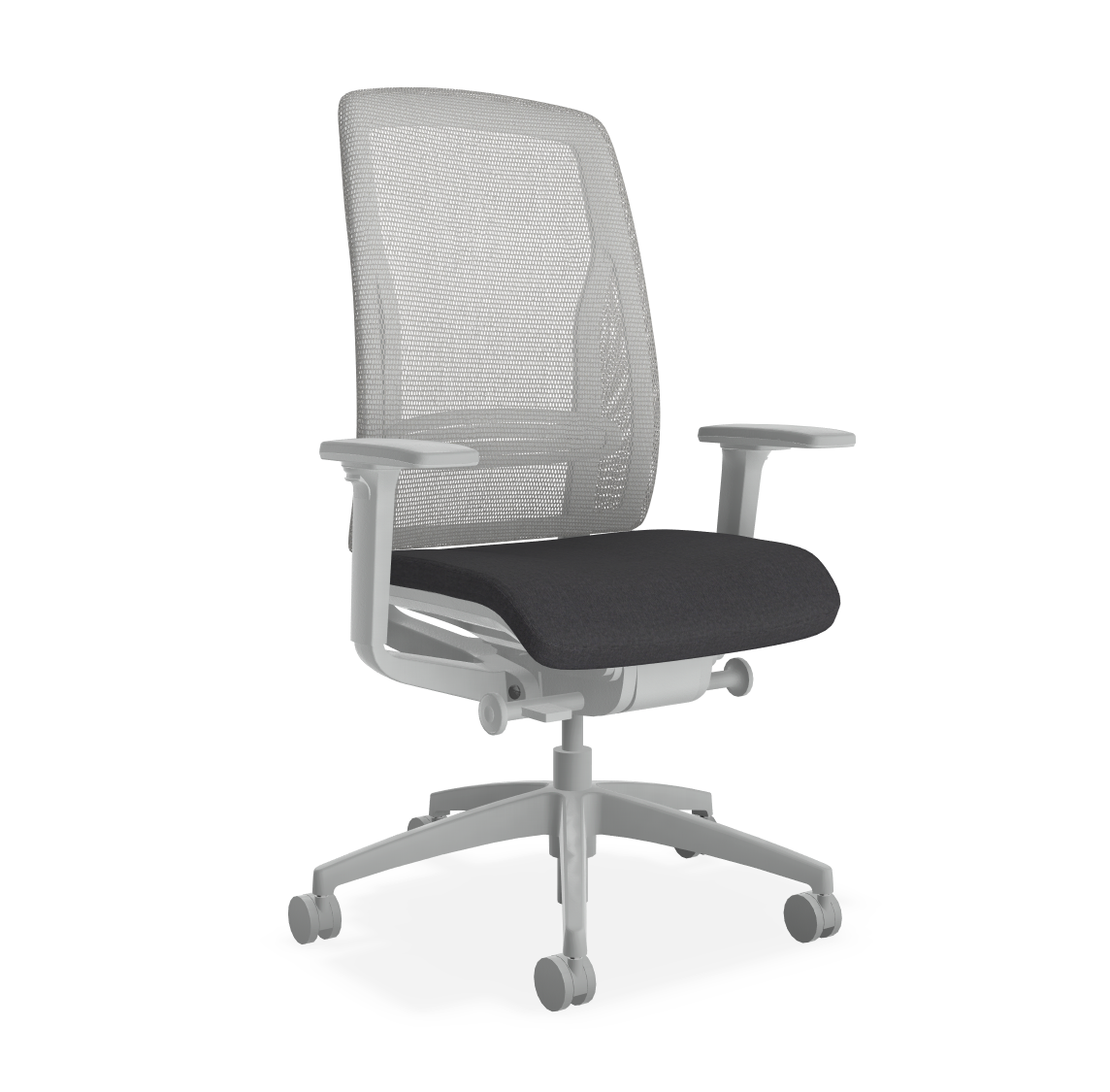

  • Teknion Around Task Chair
    (not shown in render)

    • Mesh Back, Upholstered Seat

    • 4d Arms

  • Power Elements

    • Power Cube: 1 PWR/2USB, edge mount

    • Cable Felt Organizer with Cover

    • Teknion Power Rod: YEPD2

CB-01

NO RED POWER (SECURE) OUTLETS

8X BLACK POWER  (NON-SECURE) OUTLETS (NEMA 5-15R COMMERCIAL GRADE, WHITE)
CCT#1-A and #1-A or #1-2 and #1-2
(CIRCUIT #1 CONTROLLED)

For 4X CB01 stations we can offer two options:

Option 1:

• Mount double sided black power boxes at base channel and under 21”  channel (upside down). So, all the Black power outlets will be in spine panel. However, this only works if there is no red power in the whole typical. If there is a red power, then there won’t be 0.5M separation.

Option 2:

• In this option, we would add a splitter box to power two of the single sided boxes in the wing panel. We can put one double sided power box replacing the splitter box and two single sided power boxes, but there is furniture in front of the panel and the outlets will be blocked because of the furniture.

View All Electrical

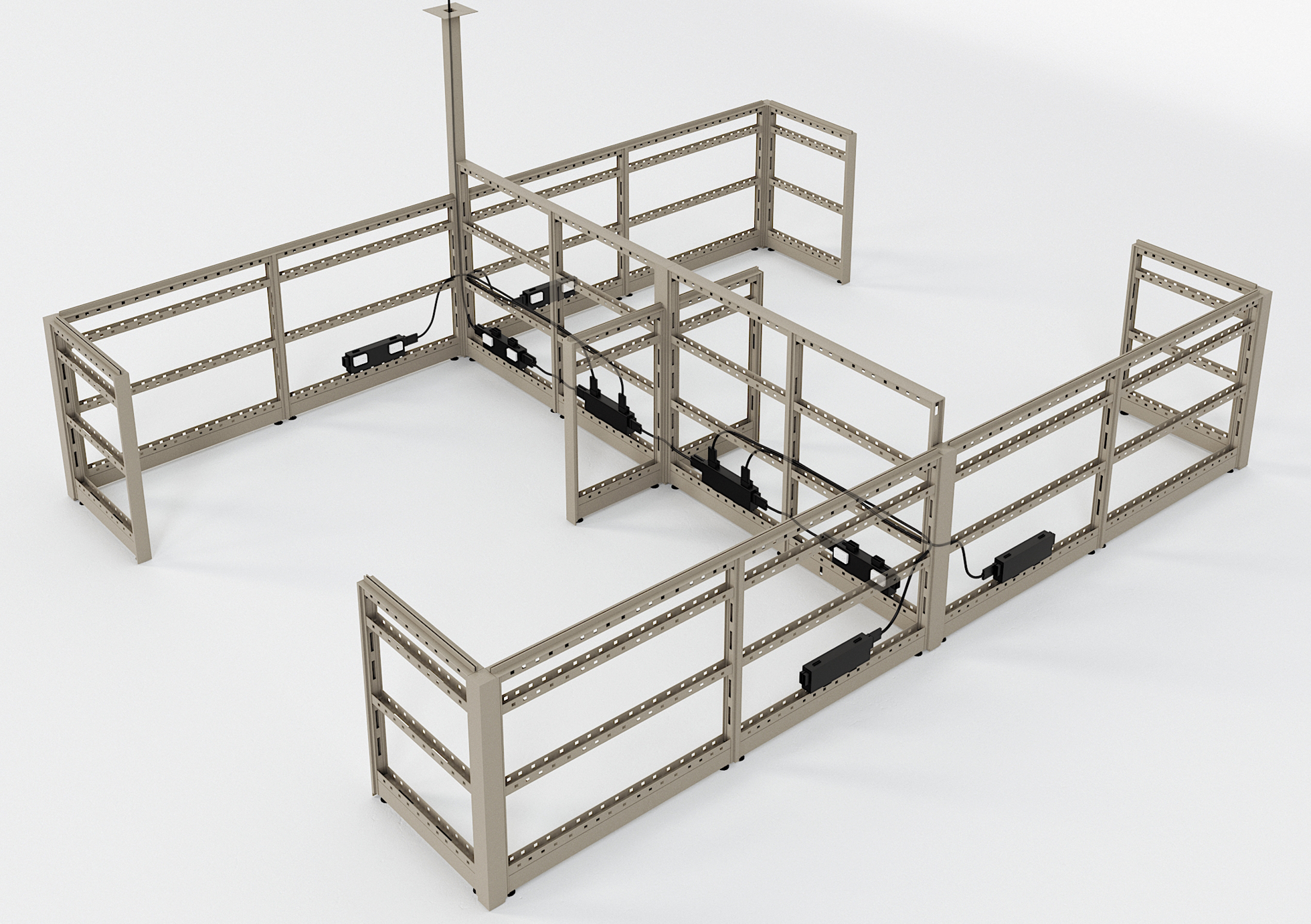

Option 1

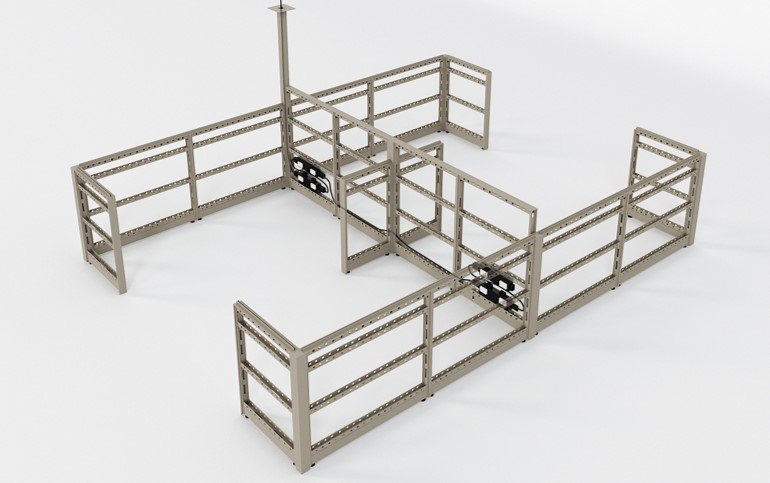

Option 2
