Our Electrical Plan Offers…

RISK MITIGATION:
Two power runs (BLACK & RED) use visual and physical polarized connectors making it impossible to mix runs

CUSTOMIZED ELECTRICS:
All electrical products are 100% assembled in our Teknion plant. We can easily customize lengths, markings and receptacle types to meet your needs.
HOSPITAL GRADE RECEPTACLES:
We fully integrate hospital grade receptacles into our modular electrical system. Reducing the need for an electrician to install into the system.
FLEXIBILITY

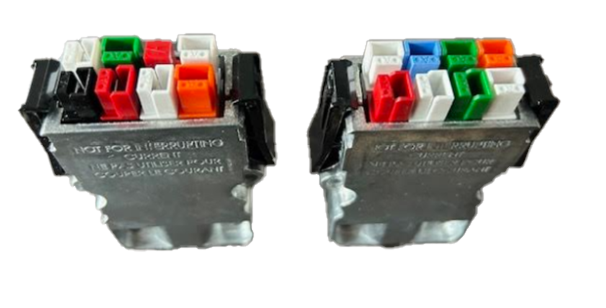

Teknion has two duplexes (four outlets) in one power box. This allows one panel frame to contain all required outlets and adjacent frames can be without power, allowing for more flexibility in planning and design.

Secure and unsecure power use Teknion electrical connectors that are visually and physically polarized. This makes it impossible to cross connect the two power runs.

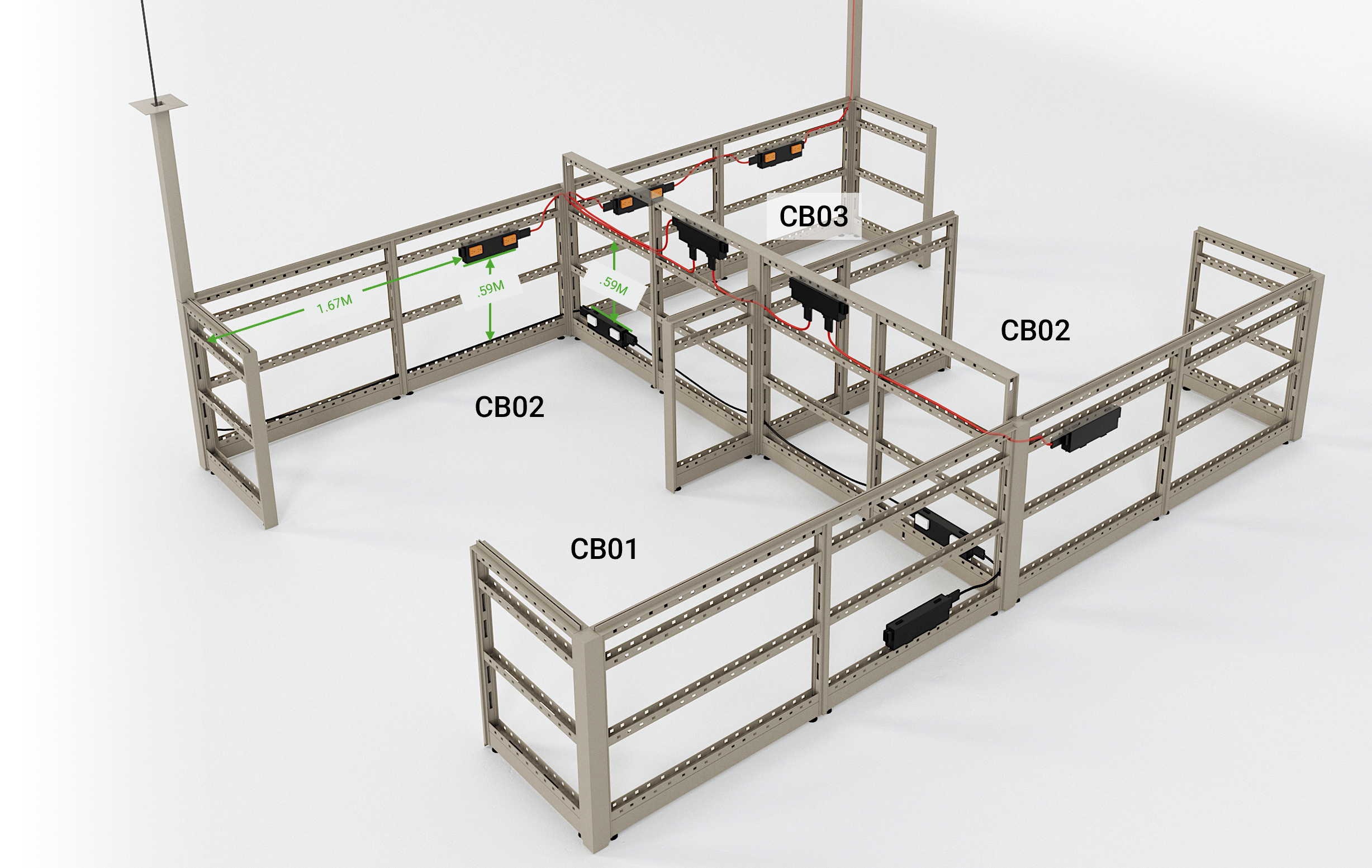

CB-01

NO RED POWER (SECURE) OUTLETS

8X BLACK POWER (NON-SECURE) OUTLETS (NEMA 5-15R COMMERCIAL GRADE, WHITE)
CCT#1-A and #1-A or #1-2 and #1-2
(CIRCUIT #1 CONTROLLED)

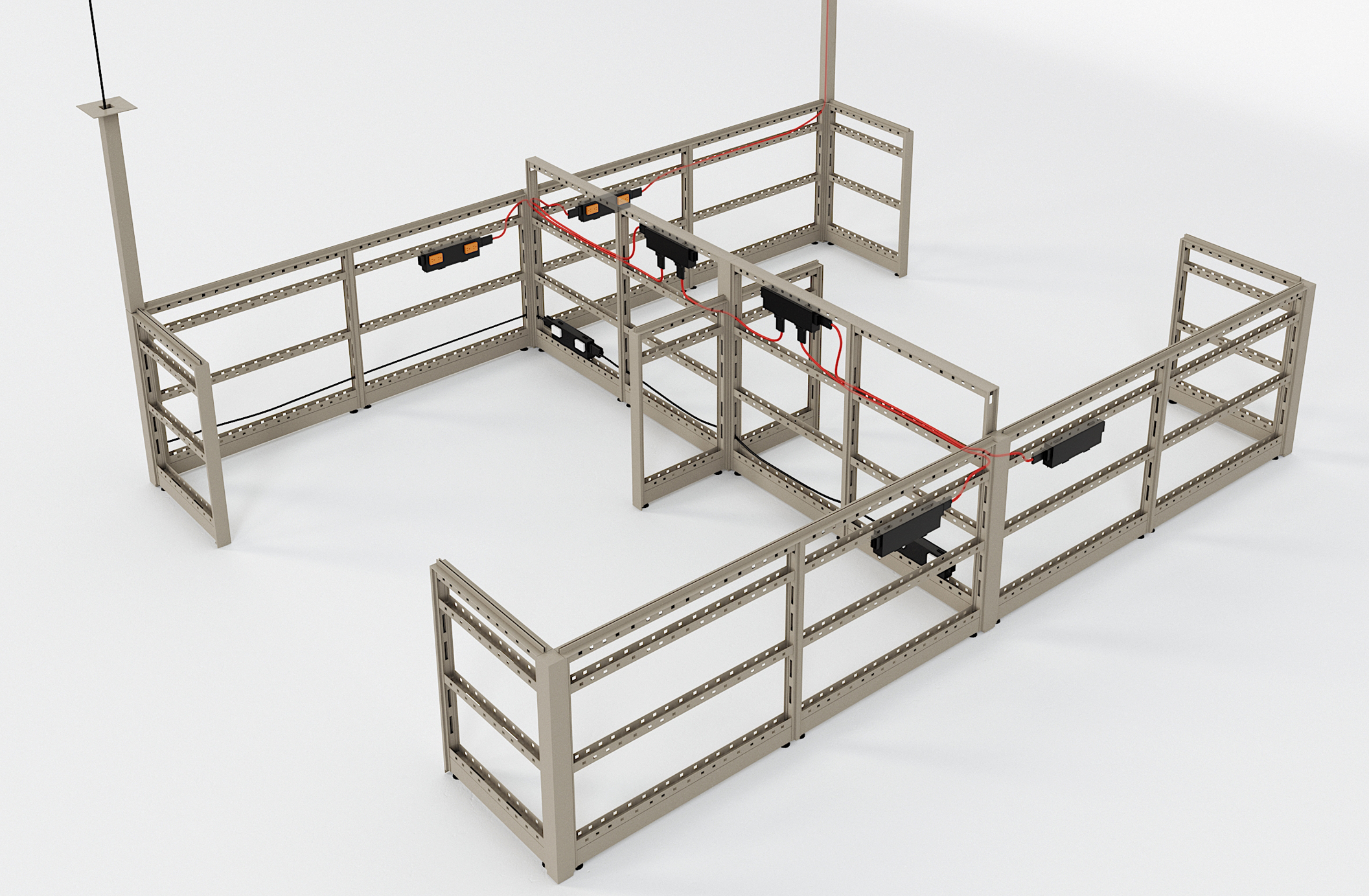

CB-02

4X RED POWER (SECURE) OUTLETS
(NEMA 5-15R HOSPITAL GRADE, ORANGE)

- CCT#5-6 or #5-7

4X BLACK POWER (NON-SECURE) OUTLETS
(NEMA 5-15R COMMERCIAL GRADE, WHITE)

- CCT#1-2 or #1-A (CIRCUIT #1 CONTROLLED)

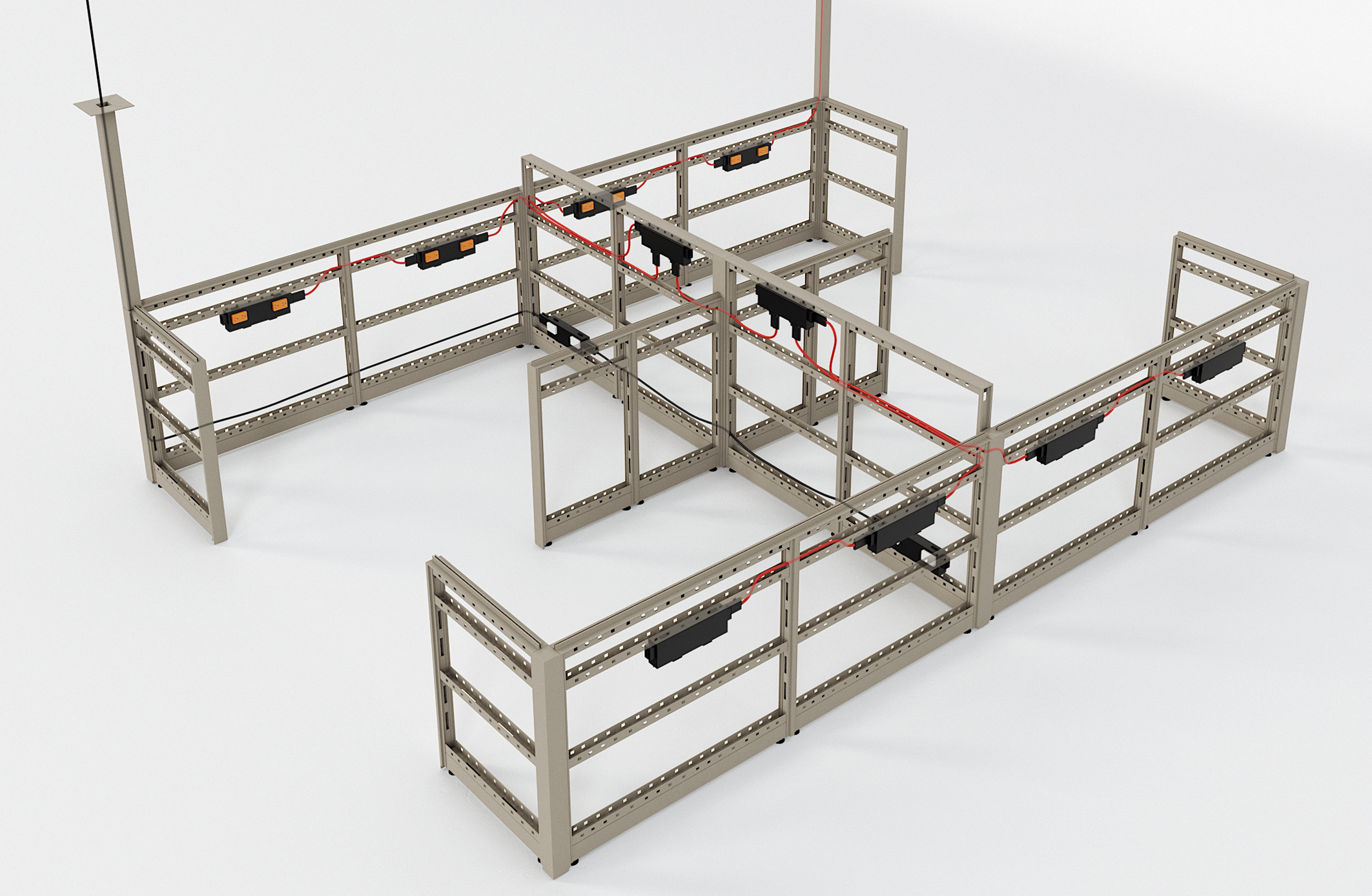

CB-03

8X RED POWER (SECURE) OUTLETS
(NEMA 5-15R HOSPITAL GRADE, ORANGE)

- CCT#5-6 and #5-6 or CCT #5-7 and #5-7

4X BLACK POWER (NON-SECURE) OUTLETS
(NEMA 5-15R COMMERCIAL GRADE, WHITE)

- CCT#1-2 or #1-A (CIRCUIT #1 CONTROLLED)

CB-01

NO RED POWER (SECURE) OUTLETS

8X BLACK POWER (NON-SECURE) OUTLETS (NEMA 5-15R COMMERCIAL GRADE, WHITE)
CCT#1-A and #1-A or #1-2 and #1-2
(CIRCUIT #1 CONTROLLED)

For 4X CB01 stations we can offer two options:

Option 1:

• Mount double sided black power boxes at base channel and under 21” channel (upside down). So, all the Black power outlets will be in spine panel. However, this only works if there is no red power in the whole typical. If there is a red power, then there won’t be 0.5M separation.

Option 2:

• In this option, we would add a splitter box to power two of the single sided boxes in the wing panel. We can put one double sided power box replacing the splitter box and two single sided power boxes, but there is furniture in front of the panel and the outlets will be blocked because of the furniture.

View CB-01 Workstation
